18 Inch 5400 m3/h Metal Horizontal Slurry Pump

  • 18 Inch 5400 m3/h Metal Horizontal Slurry Pump
  • 18 Inch 5400 m3/h Metal Horizontal Slurry Pump
  • 18 Inch 5400 m3/h Metal Horizontal Slurry Pump

18 Inch 5400 m3/h Metal Horizontal Slurry Pump

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Wooden Case
    Productivity: 100 set each Moth
    Brand: NaiPu
    Transportation: Ocean,Land,Air
    Place of Origin: ShiJiazhuang , Hebei, China
    Supply Ability: 100 set
    Certificate: ISO 9001:2008
    HS Code: 8413709990
    Port: TianJin,Qingdao,Beijing

Basic Info

Model No.: 20 / 18 TV - AH

Product Description

20 / 18 TV - AH Metal Liner Horizontal Slurry Pump

ShiJiaZhuang NaiPu Pump is the main factory of slurry pump and pump Spare Parts.

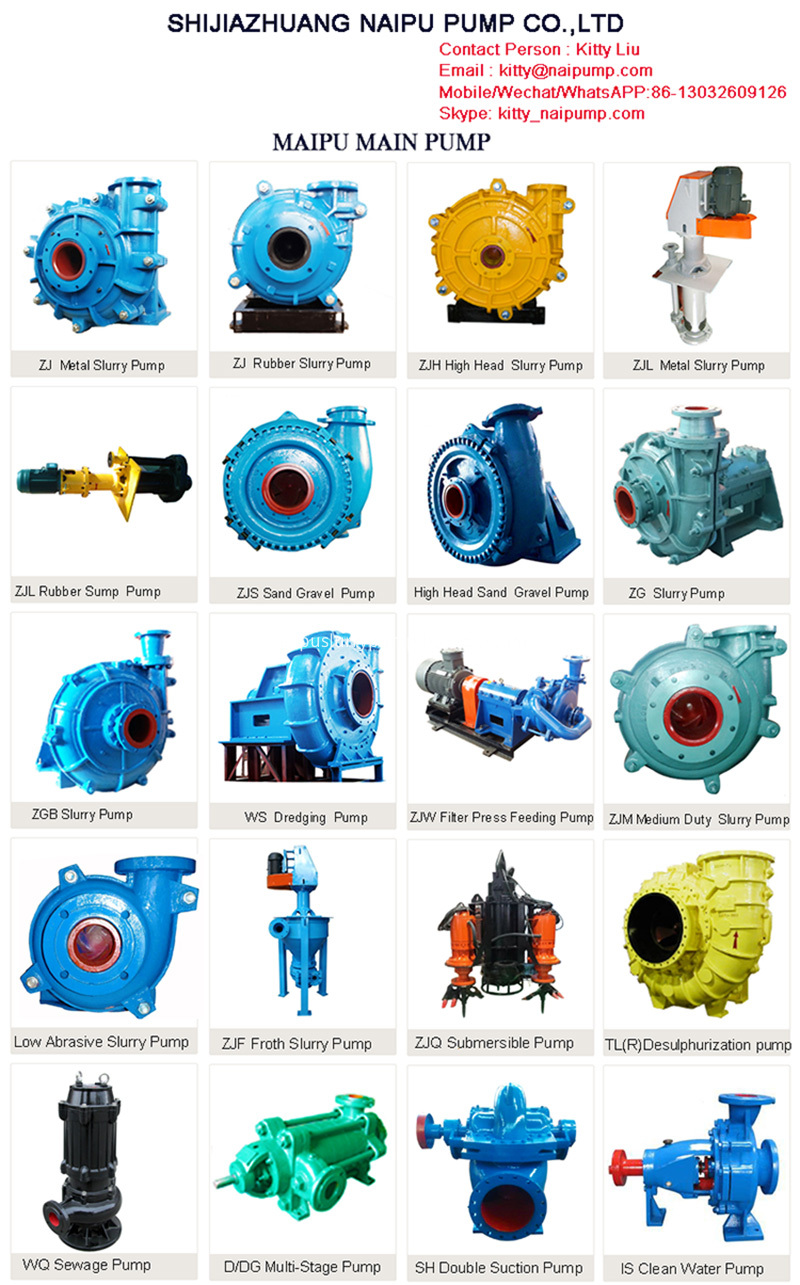

NaiPu Main products
1. AH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM slurry pump parts and Casting machinery parts

slurry pump (2)
Main Specification of 20 / 18 TV - AH Metal Liner Horizontal Slurry Pump

Products Name Horizontal Slurry Pump
Discharge Size 20 / 18 TV- AH
Flow (m3/h) 25205400m3/h
Head (m) 13-57m
Max Power(kw) 1200kw
Material High Chrome A05, Cr27- Cr 30% , Rubber R55, R33 Etc.
Drive Type CV / ZVz/ CRz/ DCz
Drived Engine Motor or Diesel
Seal Type Packing Seal , Expeller Seal, Mechanical Seal
MQQ 1 set
Payment Term TT , LC, or Negotiate
Original ShiJiaZhuang , Hebei China
Supply Range Slurry Pump , Motor , Base Plate,Guard, v-belt , Pulley
Weight --
Delivery Term By Sea, By air , By TNT, DHL , By Train

Feature and Application:


20/18 TV- AH Horizontal Slurry Pump are cantilevered, horizontal, centrifugal slurry pump. They are designed for the handing high density slurries in the metallurgical, mining , coal, power, building material and other industrial department etc.

The pump of this type also maybe installed in multistage series.

The frame plates liner and impeller for type 20 /18 TV-AH Pump are made with High chrome alloy with high abrasive.

The shaft seals for type 20 / 18 TV- AH may be adoptable of gland seal or expeller seal.

The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications

High Head Slurry pump is horizontal double shell axial suction centrifugal slurry pump.

Picture for 20/18 TV-AH SLURRY Pump


20-18 slurry pump 2

20-18 slurry pump1

Metal Liner Slurry Pump Performance Parameters


Type

Allowable Mating Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

NPSH/m

Nos of Vane

Impeller Diameter/mm

1.5X1-NP-AH

15

12.6--28.8

6--68

1200--3800

40

2--4

5

152

2X1.5-NP-AH

15

32.4--72

6--58

1200--3200

45

3.5--8

5

184

3X2-NP-AH

30

39.6--86.4

12--64

1300--2700

55

4--6

5

214

4X3-NP-AH

30

86.4--198

9--52

1000--2200

71

4--6

5

245

6X4-NP-AH

60

162--360

12--56

800--1550

65

5--8

5

365

8X6-NP-AH

300

360--828

10--61

500--1140

72

2--9

5

510

10X8-NP-AH

560

612--1368

11--61

400--850

71

4--10

5

686

12X10-NP-AH

560

936--1980

7--68

300--800

82

6

5

762

14X12-NP-AH

560

1260--2772

13--63

300--600

77

3--10

5

965

16X14-NP-AH

1200

1368--3060

11--63

250--550

79

4--10

5

1067

20X18-NP-AH

1200

2520--5400

13--57

200--400

85

5--10

5

1370

























Horizontal Slurry Pump Structure

slurry pump Assembly Drawing


Horizontal Slurry Pump Dimension:

slurry pump dimension

NaiPu Main Pump Model

AH series

L(R) ,M

HH

SP(R)

G

AF Series

1.5/1B-AH(R)

20A-L

1.5/1 C-HH

40PV-SP(R)

6/4D-G

2QV-AF

2/1.5B-AH(R)

50B-L(R)

3/2D-HH

65QV-SP(R)

8/6E-G

3QV-AF

3/2C-AH(R)

75C-L

4/3E-HH

100RV-SP(R)

10/8F-G

6SV-AF

4/3C-AH(R)

100 D-L

4/3X-HH

150SV-SP(R)

10/8S-G

8SV-AF

6/4D-AH(R)

150E-L

6/4F-HH

200SV-SP

12/10G-G

6/4E-AH(R)

300S-L

6/4X-HH

250TV-SP

14/12G-G

8/6E-AH(R)

10/8 R-M

6S-H

14/12T-G

8/6R-AH(R)

10/8 E-M

8/6S-H

16/14 G-G

10/8F-AH(R)

8/6X-H

16/14TU-GH

10/8X-AH(R)

6S-HP

16/14H-GH

12/10ST-AH(R)

8/6S-HP

18/16G-G

14/12ST-AH(R)

8/6X-HP

18/16 TU-GH

16/14TU-AH(R)

20/18G(TU)-AH(R)
