6 inch  River Sand Suction Dredging Pump

  • 6 inch  River Sand Suction Dredging Pump
  • 6 inch  River Sand Suction Dredging Pump
  • 6 inch  River Sand Suction Dredging Pump
  • 6 inch  River Sand Suction Dredging Pump

6 inch River Sand Suction Dredging Pump

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Wooden Case
    Productivity: 100 set each Moth
    Brand: NaiPu
    Transportation: Ocean,Land,Air
    Place of Origin: ShiJiazhuang , Hebei, China
    Supply Ability: 10 set
    Certificate: ISO 9001:2008
    HS Code: 8413709990
    Port: TianJin,Qingdao,Beijing

Basic Info

Model No.: 8/6 E-G Sand Pump

Product Description

6 inch River Sand Suction Dredging Pump

ShiJiaZhuang NaiPu Pump Co., Ltd is a professional factory of slurry pump , sand gravel pump , dredging pump , with 30 years production experience.

We can supply Horizontal slurry pump , sand gravel pump , vertical sump pump , Submersible slurry pump , and pump Spare Parts.

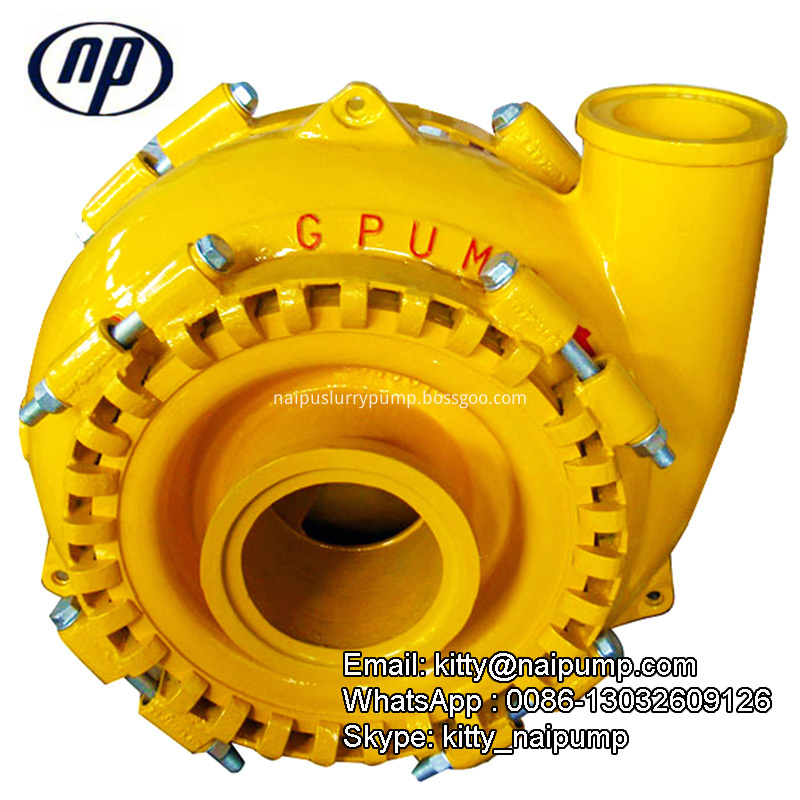

6 inch Sand Pump Picture



6 inch sand pump 1


sand gravel pump

Feature and Application

6 inch River Sand Suction Dredging Pump are widely used for pumping gravel, dredging , or pumping solids which is too large to be transported by others Pump.

6 Inches Gravel Sand Pump outlet diameters is 250 mm, Inlet size is 300mm.

The Material 8inches Sand Dredge Pump is High Chrome Alloy A05 .

The others Material like A07, A49, is also available.

Shaft Seal: Gland Packing , Expeller Seal and Mechanical Seal

1. Construction of this pump is of single casing connected by means of clamp bands and wide wet passage.
2. The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys.
3. The discharge direction of 6 inch River Sand Suction Dredging Pump can be oriented in any direction of 360°.
4. 6 inches River Sand Suction Dredging pump possesses the advantages of easy installation and operation, good performance of NPSH and Abrasion-resistance

6 inch River Sand Suction Dredging Pump Performance parameters

Pump
Model

Allowable
Max. Power
(kW)

Clear Water Performance

Capacity Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

Impeller
Dia.

m3/h

l/s

6/4D-G

60

36-250

10-70

5-52

600-1400

58

2.5-3.5

378

8/6E-G

120

126-576

35-160

6-45

800-1400

60

3-4.5

378

10/8S-GH

560

216-936

60-260

8-52

500-1000

65

3-7.5

533

10/8S-G

560

180-1440

50-400

24-30

500-950

72

2.5-5

711

12/10G-G

600

360-1440

100-400

10-60

400-850

65

1.5-4.5

667

12/10G-GH

1200

288-2808

80-780

16-80

350-700

73

2.0-10.0

950

14/12G-G

1200

576-3024

160-840

8-70

300-700

68

2.0-8.0

864

16/14TU-GH

1200

324-3600

90-1000

26-70

300-500

72

3.0-6.0

1270

18/16T-G

1200

720-4320

200-1200

12-48

250-500

72

3.0-6.0

1067

6 inch River Sand Suction Dredging Pump Structure

Sand gravel Pump Drawing

6 inch River Sand Suction Dredging Pump Main Pump parts:

No. Name Parts Code Material
2.1 Impeller EG86137 High Chrome
2.2 casing EG6131 High Chrome
2.3 Front Liner EG86013 High Chrome
2.4 Back Liner E4041 High Chrome
2.5 shaft Sleeve E075 3Cr13
2.6 packing E111 Q21
2.7 Bearing E009
2.8 Shaft Spacer E117 Stainless steel
2.9 Packing Gland E044 HT200
2.10 Latern Ring E063 1Cr18Ni9Ti
2.11 Neck Ring E067 1Cr18Ni9Ti
2.12 Stuffing Box E078 HT200
2.13 Gasket E122 Rubber
2.14 O Type Ring E109 Rubber
2.15 O Ring EG6124 Rubber
2.16 Discharge Joint F6132 Rubber
2.17 Intake Joint F8132 Rubber
2.18 Volute Liner Seal E4124 Rubber
2.19 Bearing Assembly E005M

NAIPU MAIN SAND PUMP MODEL:



Sand Pump1


Company Information


ShiJiazhuang Naipu Pump Co.,Ltd is Specialized in the manufacturer and sales of slurry pump and pump parts.

We own mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop .

Naipu is willing to undertake any OEM(Origin Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
Considering various requirement for material in the market, we can supply wet end part material as following, metal material A05,A07,A12,A33,A49,A61 and etc. Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc. Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.

The Products are widely used in mining , power, metallurgy, coal , dredging, building material and other industrial lines to pump concentrate, tailing,sludge, and other abrasive high density slurries.

NaiPu Main products
1. AH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM slurry pump parts and Casting machinery parts

NaiPu Main Pump Model

AH series

L(R) ,M

HH

SP(R)

G

AF Series

1.5/1B-AH(R)

20A-L

1.5/1 C-HH

40PV-SP(R)

6/4D-G

2QV-AF

2/1.5B-AH(R)

50B-L(R)

3/2D-HH

65QV-SP(R)

8/6E-G

3QV-AF

3/2C-AH(R)

75C-L

4/3E-HH

100RV-SP(R)

10/8F-G

6SV-AF

4/3C-AH(R)

100 D-L

4/3X-HH

150SV-SP(R)

10/8S-G

8SV-AF

6/4D-AH(R)

150E-L

6/4F-HH

200SV-SP

12/10G-G

6/4E-AH(R)

300S-L

6/4X-HH

250TV-SP

14/12G-G

8/6E-AH(R)

10/8 R-M

6S-H

14/12T-G

8/6R-AH(R)

10/8 E-M

8/6S-H

16/14 G-G

10/8F-AH(R)

8/6X-H

16/14TU-GH

10/8X-AH(R)

6S-HP

16/14H-GH

12/10ST-AH(R)

8/6S-HP

18/16G-G

14/12ST-AH(R)

8/6X-HP

18/16 TU-GH

16/14TU-AH(R)

20/18G(TU)-AH(R)



For more details for 6 inch River Sand Suction Dredging Pump , Welcome to contact me
